Product Summary:
The maximum range of the MR50W miniature absolute magnetic scale is 22mm, and the reading head installation size is smaller (33*15*15mm), making it more adaptable to operations in narrow spaces. The maximum range of the long-range absolute magnetic scale can reach 16.384 meters, and the range that can be selected is wider. The absolute magnetic scale is a high-precision sensor used for linear or rotational position measurement. Its core working components are divided into two main parts. The "magnetic scale" has magnetic scales evenly recorded on the scale. The "reading head" is equipped with a magnetic sensitive element inside. When moving above the ruler, the absolute position information of the magnetic signal can be read. There is no need to go back to zero to find a reference point like an incremental ruler. Even if the power is cut off midway, the position information will not be lost. The position will still be accurate after repowering.
- Product Overview
- Technical Parameters

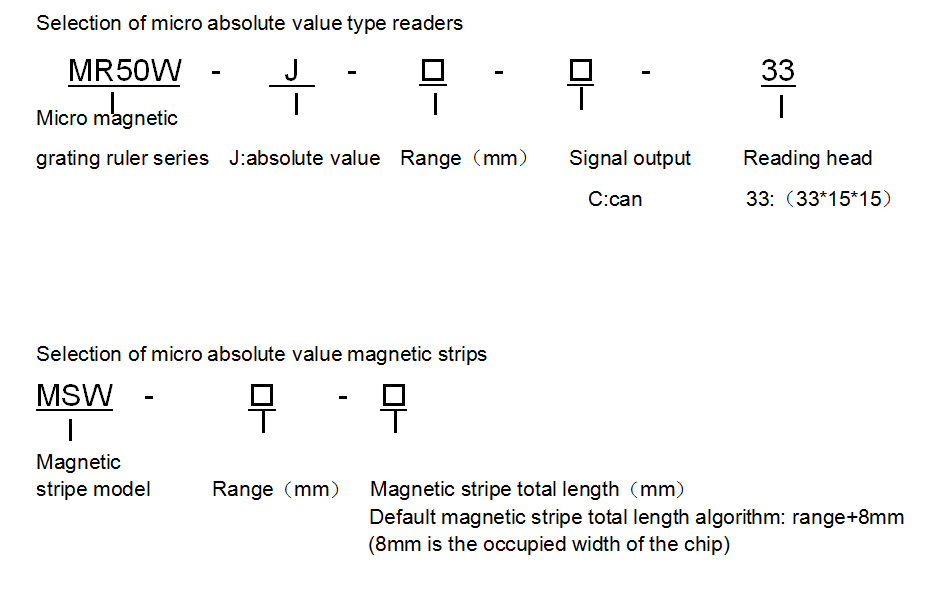

- Size selection
1. Overview of the MR50W miniature absolute magnetic scale: The maximum range of the miniature absolute magnetic scale is 22mm, and the installation size of the reading head is smaller (33*15*15mm), making it more adaptable to operations in narrow spaces. The maximum range of the long-range absolute magnetic scale can reach 16.384 meters, and the range that can be selected is wider. The absolute magnetic scale is a high-precision sensor used for linear or rotational position measurement. Its core working components are divided into two main parts. The "magnetic scale" has magnetic scales evenly recorded on the scale. The "reading head" is equipped with a magnetic sensitive element inside. When moving above the ruler, the absolute position information of the magnetic signal can be read. There is no need to go back to zero to find a reference point like an incremental ruler. Even if the power is cut off midway, the position information will not be lost. The position will still be accurate after repowering.
2. Characteristics and applications of the MR50W miniature absolute magnetic scale: Strong anti-interference, insensitive to oil, dust, vibration and other industrial environments, high reliability; No need to return to zero, saving time and preventing production problems caused by unexpected power outages; Simple maintenance, usually no batteries required to maintain memory, solid structure. It is widely used in situations that require high reliability and absolute position memory, such as CNC machine tools, precision measurement equipment, automated production lines, medical equipment, robots, etc. Miniature absolute magnetic scale: Dual-channel absolute magnetic scale encoder; small installation size; high precision; speed up to 5m/s; supports CAN bus.
Technical Parameter
Measurement accuracy | ≤10μm |
Resolution | 1μm |
Magnetic pole width | 2mm |
Measuring range | 0-22mm（optional） |
Repeatability | <2µm |
Unidirectional Repeatability | <1µm |
Power supply | DC5V |
delay slot | <62.5 µs |
communication mode | CAN |
supply current | 93mA |
Protection grade | IP67 |
Magnetic head size | 33*15*15（Length * width * height mm) |
cable length | Default: 2 meters (maximum 10 meters) |
Installation of magnetic strips and magnetic heads | 0.4（mm）±0.1mm |
Wiring definition
Red | Black | White | Green | Shielded wire |
5VDC | 0V | CANH | CANL | · Earthing |
CAN Communication technology parameter
CAN Interface spec | Standard CAN2.0 |
CAN Connector Type | 2PIN connector |
Frame type | Standard frame，CANID 11bit |
Transmission speed | >=500kbps |
CAN ID | The software is configurable.
|
CAN The number of terminals supported by the local area network | >=56个 |
The transmission cycle of each terminal | 1~1000ms configurable |
