Product Summary:
Intrinsic Safety Exclusive Use for Coal Reluctance Displacement Sensor Principle: Potentiometer principle. The reluctance displacement sensor is an absolute position measurement type, which is used for the direct measurement of displacement and length in the adjustment system (control system) and measurement system. The output DC voltage signal can also be converted into the standard 0-5V, 0-10V or 4-20mA DC signal through the built-in or external V/A converter module. Remote transmission of control requirements is also possible. Displacement variation: 0-100% of the given input operating voltage (varies with displacement). Features: The coal special reluctance type displacement sensor in the circuit part from the power supply and signal output are added isolation and anti-interference protection, the vast majority of the elimination of external factors interference.
- Product Overview
- Technical Parameters
- Size selection
Intrinsic Safety Exclusive Use for Coal Reluctance Displacement Sensor Principle: Potentiometer principle. The reluctance displacement sensor is an absolute position measurement type, which is used for the direct measurement of displacement and length in the adjustment system (control system) and measurement system. The output DC voltage signal can also be converted into the standard 0-5V, 0-10V or 4-20mA DC signal through the built-in or external V/A converter module. Remote transmission of control requirements is also possible. Displacement variation: 0-100% of the given input operating voltage (varies with displacement). Features: The coal special reluctance type displacement sensor in the circuit part from the power supply and signal output are added isolation and anti-interference protection, the vast majority of the elimination of external factors interference.
PME17 Intrinsic Safety Exclusive Use for Coal Reluctance Displacement Sensor Technical Parameter
Measuring Rang | 50mm～1500mm |
Linearity | Better than ±0.05%FS |
Repeatability | 0.01mm |
Resolution | Infinitesimal |
Sensor Type | Sliding Potentiometer |
Output Signal | 0-5V，0-10V，4-20mA，RS485 |
Working voltage | 8～24VDC |
Resistance to shock | 10G，10Hz to 1500Hz |
Shock Resistance | 50g（11 ms） |
Max Speed of Reciprocation | ≤2000mm/s |
Working Current | ≤2mA |
Insulation Resistance | ≥100MQ（500VDc） |
Electrical Connection | Waterproof Cable Straight Out Line |
Shell Material | 304 Stainless Steel（Replaceable） |
Protection Grade | IP68 |
Life Span | ≥1000万次（It depends on the environment）（It depends on the environment） |
Working Pressure | ≥35Mpa |
Operating Temperature | -50℃～150℃ |
Explosion-proof Sign | Ex ia IIC T6 Ga |
Explosion Proof Certification | See the Attached Diagram↓ |

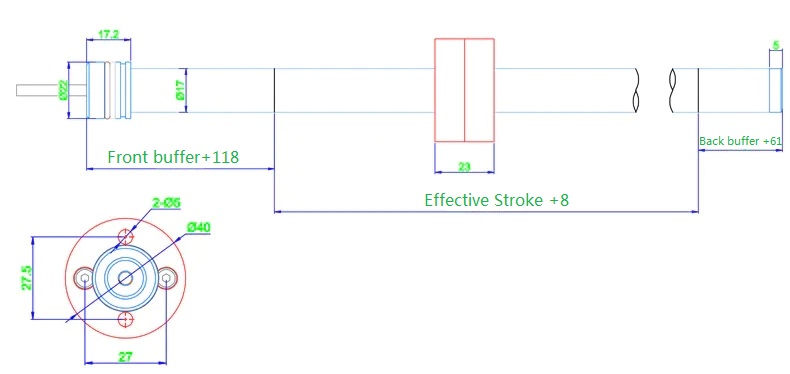

Installation Dimension:
