Product Summary:
KTF1 slider type electronic ruler (alias: resistance ruler, potentiometer, displacement sensor) Principle: Potentiometer principle, all sensors are position measurement type, used in the adjustment system (control system) and measurement system, to directly measure the displacement and length, output DC voltage signal, can also be converted into the standard 0-5V, 0-10V or 4-20mA DC signal through the built-in or external V/A converter module. Can also be remote transmission control requirements. KTF1 slider electronic ruler (alias: resistance ruler, potentiometer, displacement sensor) output displacement variation: 0-100% given input operating voltage (with displacement variation).
- Product Overview
- Technical Parameters
- Size selection
Attention:The stroke is from 75mm-5000mm. If you need different lengths of travel, please contact with the supplier. The default output: 0-100% of the power supply voltage value, which is resistance out put, if you need other signal output, such as 4-20mA, 0-5V, 0-10V,and RS485 signal output please purchase the transmission module in the shop or contact with the supplier...

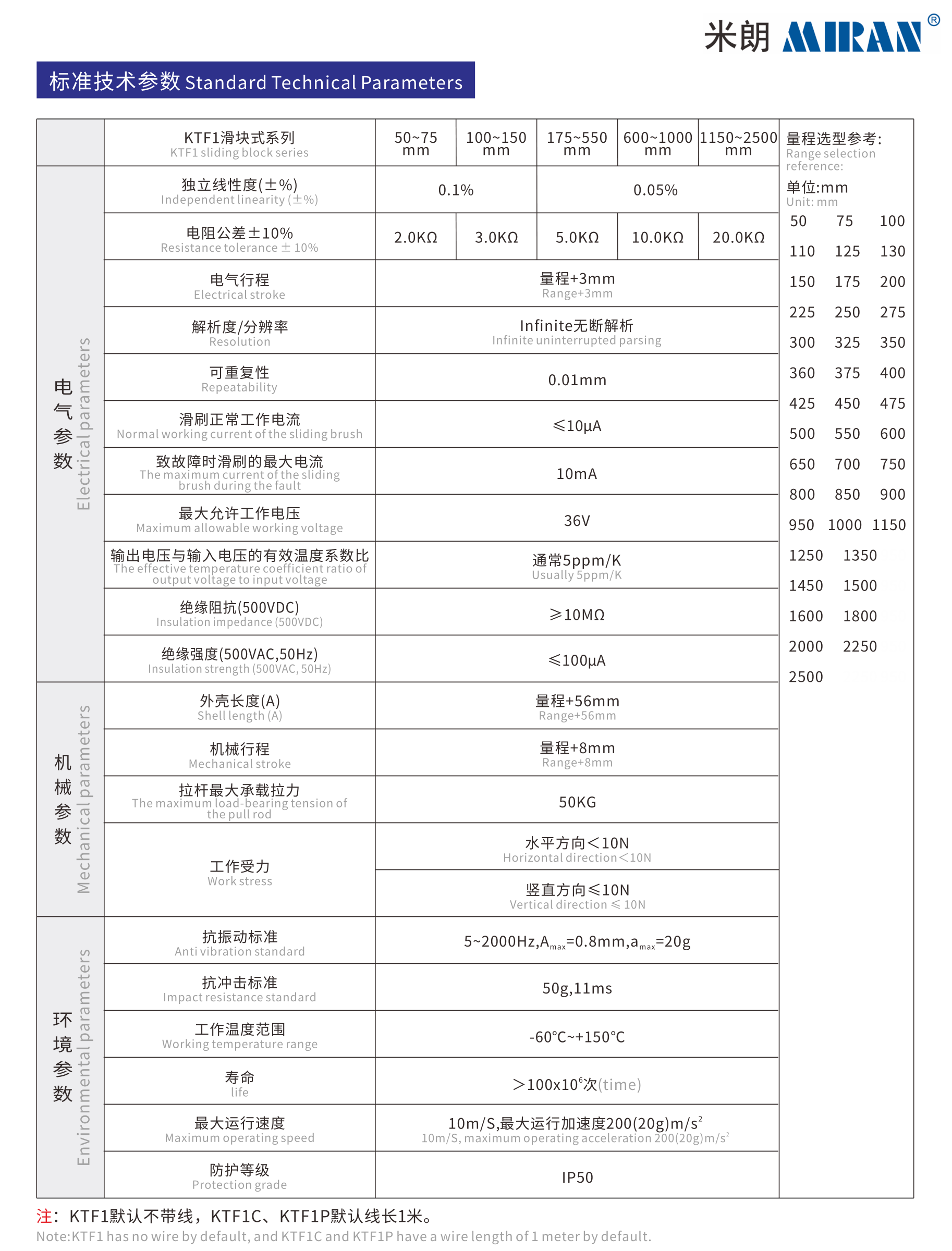

Technical Parameter

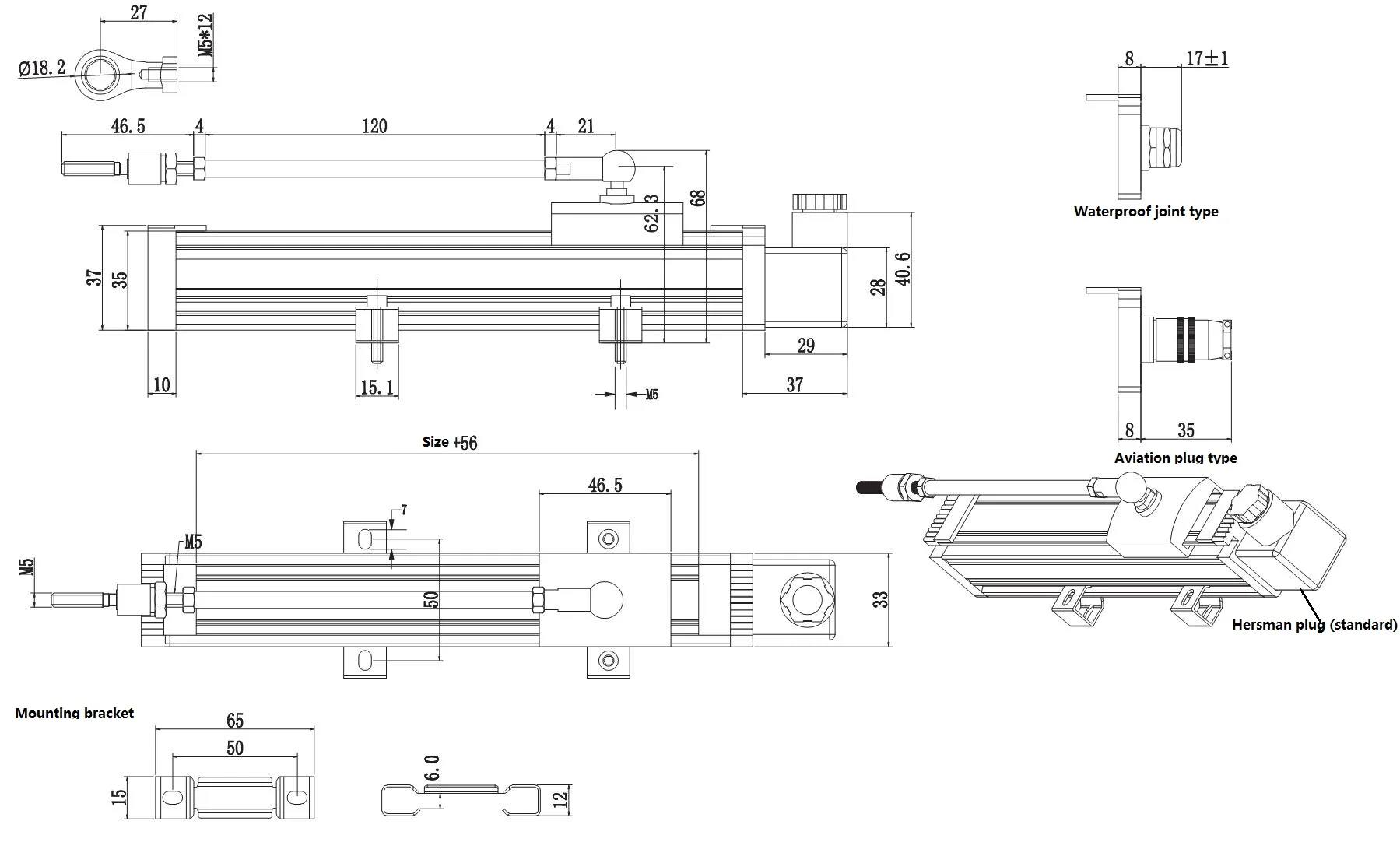

Installation Size(mm)
KTF1 slider type electronic ruler output type:
Resistance output type (potentiometer) : 5kΩ, 10KΩ, 20KΩ,
Voltage output type (external/built-in module) : 0-5V, 0-10V,
Current output type (external/built-in module) : 4-20MA (two-wire system, three-wire system),
Digital signal (external/built-in module) : RS485
KTF1 slider type electronic ruler application scope:
Application: KTF1 slider displacement sensor is a general installation of miniaturization, especially suitable for reducing the mechanical length direction of the installation size, suitable for large stroke type applications, such as: large injection molding machine closing stroke, rubber machine closing stroke, woodworking machinery, hydraulic machinery.
