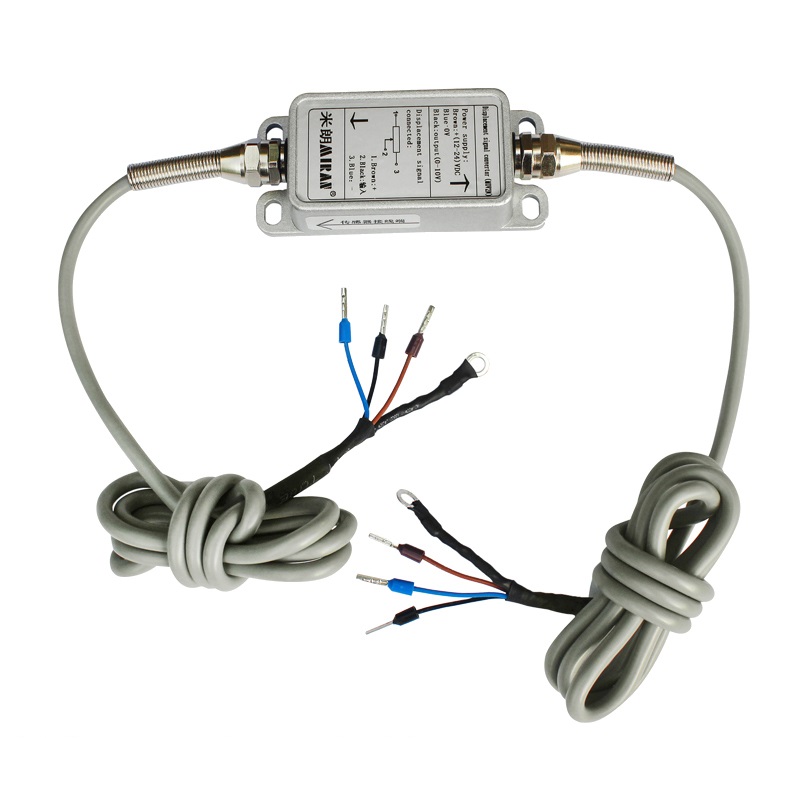

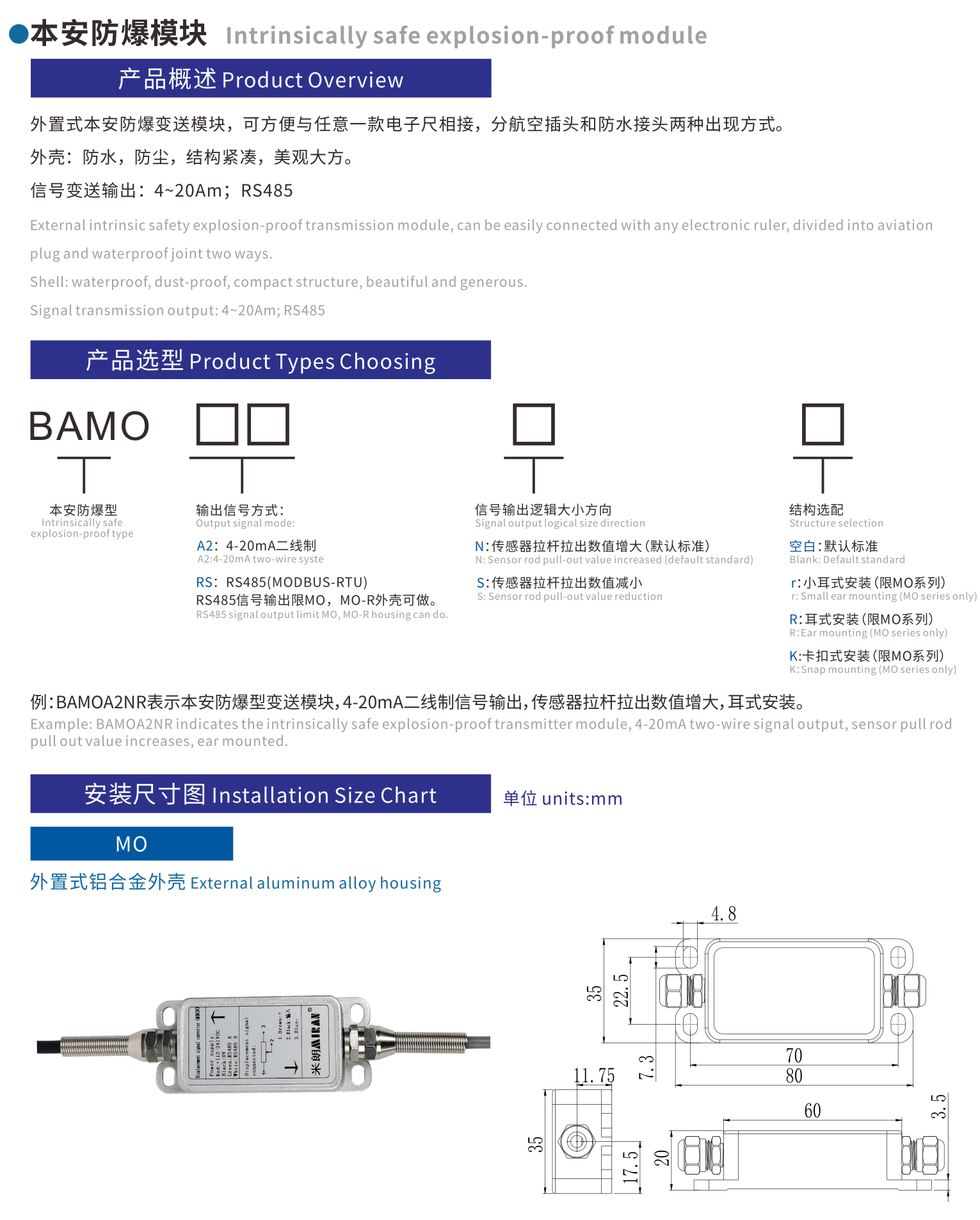

External transmission module:

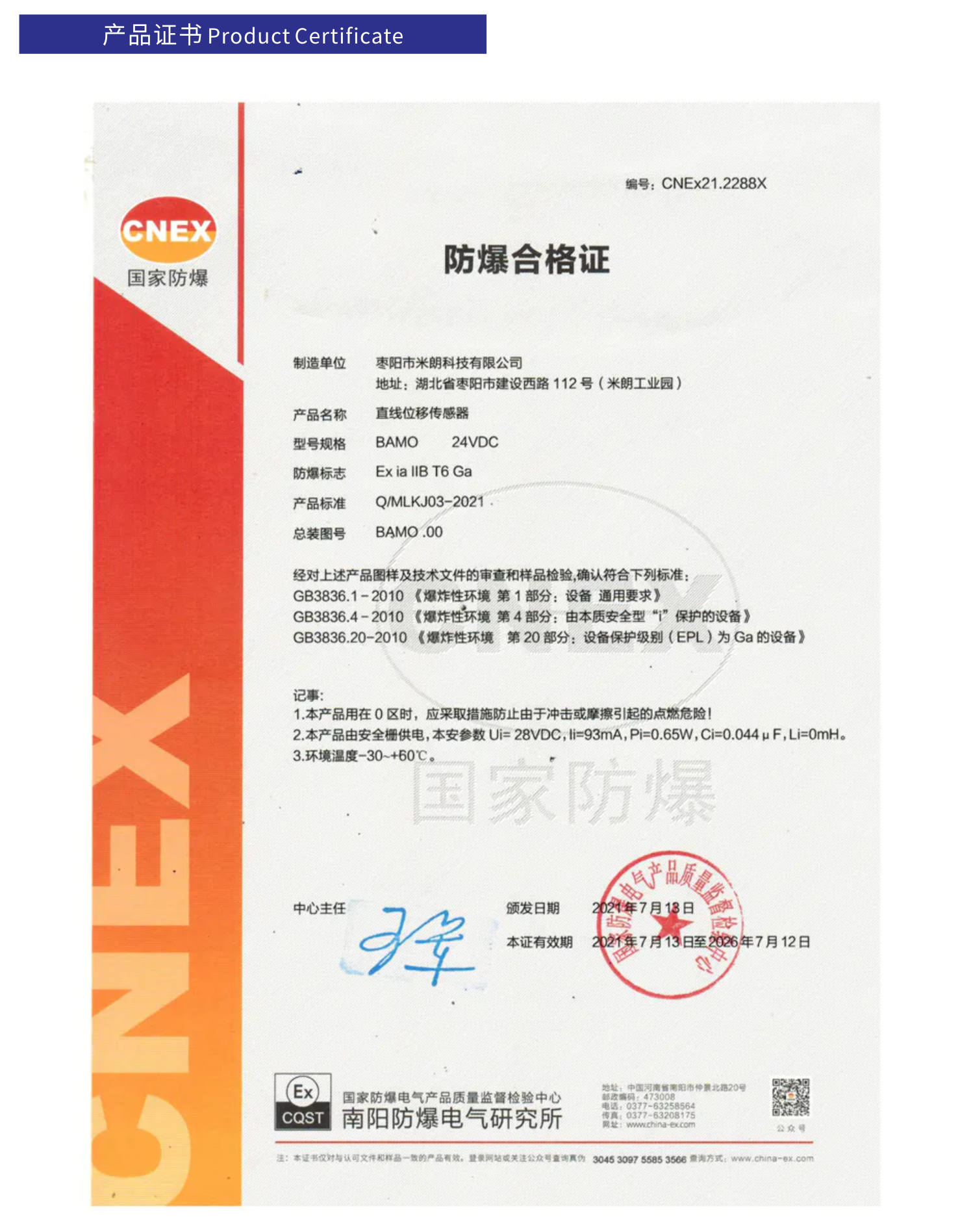

Intrinsic safety explosion-proof external displacement sensor transmission module description: Ordinary linear displacement sensors, electronic rulers, resistance rulers and pull cord/guy wire displacement sensors are all displacement sensors based on the potentiometer principle. They are actually equivalent to a potentiometer. In layman's terms, it is also called: sliding rheostat. The output voltage is 0-5V depending on the voltage supplied by it. That is, if the customer's power supply voltage is 5V, the output is directly 0-5V. If the supply voltage is 10V, the output is 0-10V. If the supply voltage is 24V, the output is 0-24V. If the power supply voltage is only 24V and there is no 5V or 10V power supply, but the output wants 0-5V or 0-10V and 4-20mA, RS485, then you need to use our module.

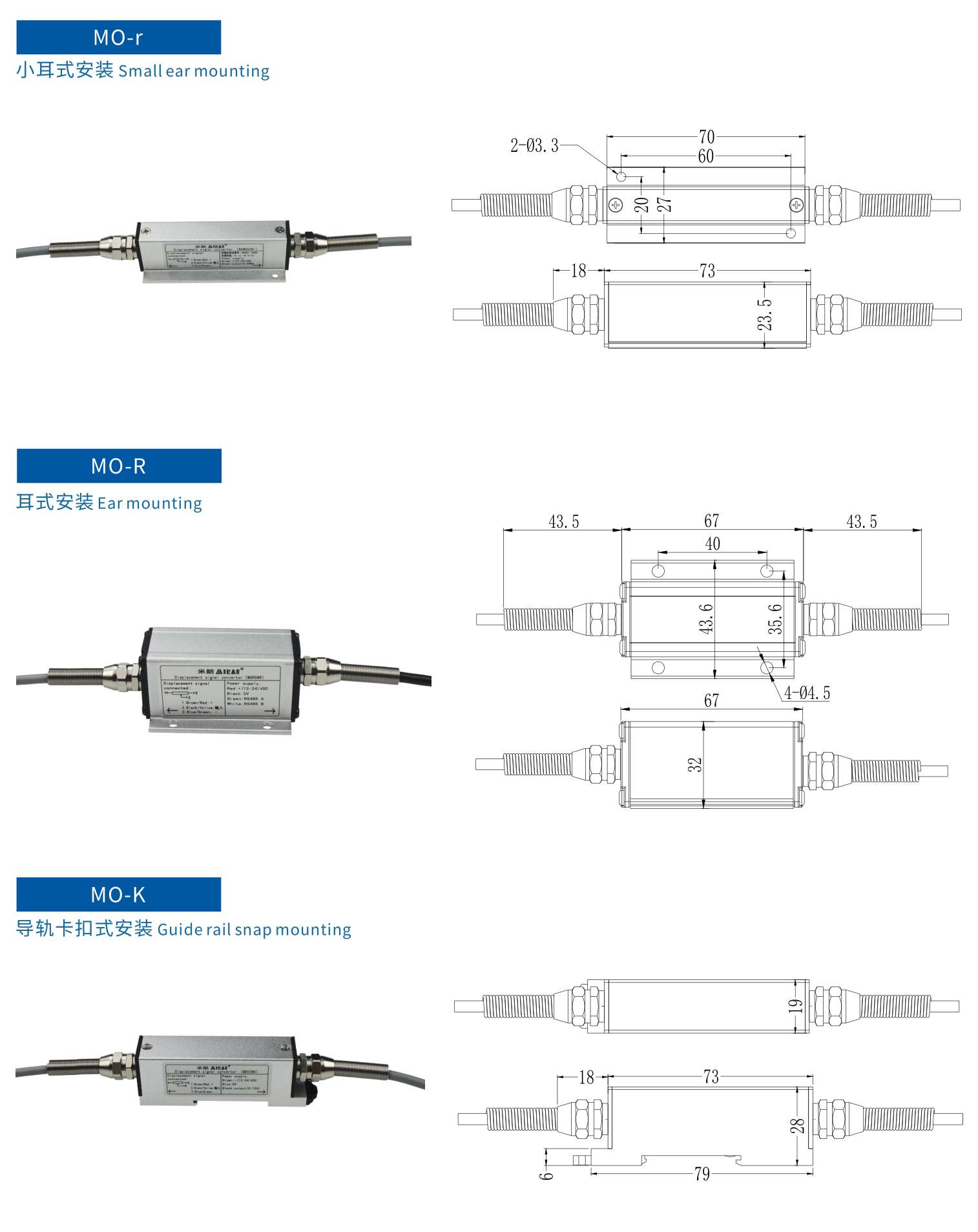

Module wiring mode：

Illustrate:

Ordinary electronic rulers and wire rulers, resistive ones, are all displacement sensors based on the potentiometer principle. They are actually equivalent to a potentiometer. In layman's terms, they are also called: sliding rheostat. The output is 0~whatever V voltage is supplied. V voltage; that is, if the supply voltage is 5V, the output is directly 0~5V. If the supply voltage is 10 V, the output is 0~10V. If the power supply is 3.3V, the output is 0~3.3V.

If the power supply is 3.6V, the output is 0~3.6V. If the power supply voltage is 24V, the output is 0~24V.

If the power supply voltage is only 24V and there is no 5V or 10V power supply, but the output wants 0~5V or 0~10V, then you need to use our module. If the customer needs 4-20mA output, a module must be installed. The module can be built inside the sensor, or it can be an external plug module, or a separate aluminum alloy or plastic shell module. In this case, the module can be directly supplied with a power supply voltage of 15~36V, and the output can be 0~5V, 0~10V, 4 ~20 m A, -10V ~+10V, -5V~+5V, etc.
