Product Summary:
The core electronic component of the MTMD/MTMD2 series magnetic induction slider linear displacement sensor, the magnetic induction chip, is independently developed and produced by Miran Company. It can be selected for digital signal output and analog signal output, and is of absolute position output type. Any stroke within 360mm can be customized. It is an excellent alternative to small-range linear displacement sensors. The magnetic induction slider linear displacement sensor is non-contact and will never wear out. It has the advantages of high resolution, high precision, high stability, high reliability, fast response time and long working life. The sensor does not need to be recalibrated or maintained regularly.
- Product Overview
- Technical Parameters
- Size selection
Overview of MTMD/MTMD2 Slider Displacement Sensor
The core electronic component of the MTMD/MTMD2 series magnetic induction slider linear displacement sensor, the magnetic induction chip, is independently developed and produced by Miran Company. It can be selected for digital signal output and analog signal output, and is of absolute position output type. Any stroke within 360mm can be customized. It is an excellent alternative to small-range linear displacement sensors.
The magnetic induction slider linear displacement sensor is non-contact and will never wear out. It has the advantages of high resolution, high precision, high stability, high reliability, fast response time and long working life. The sensor does not need to be recalibrated or maintained regularly.

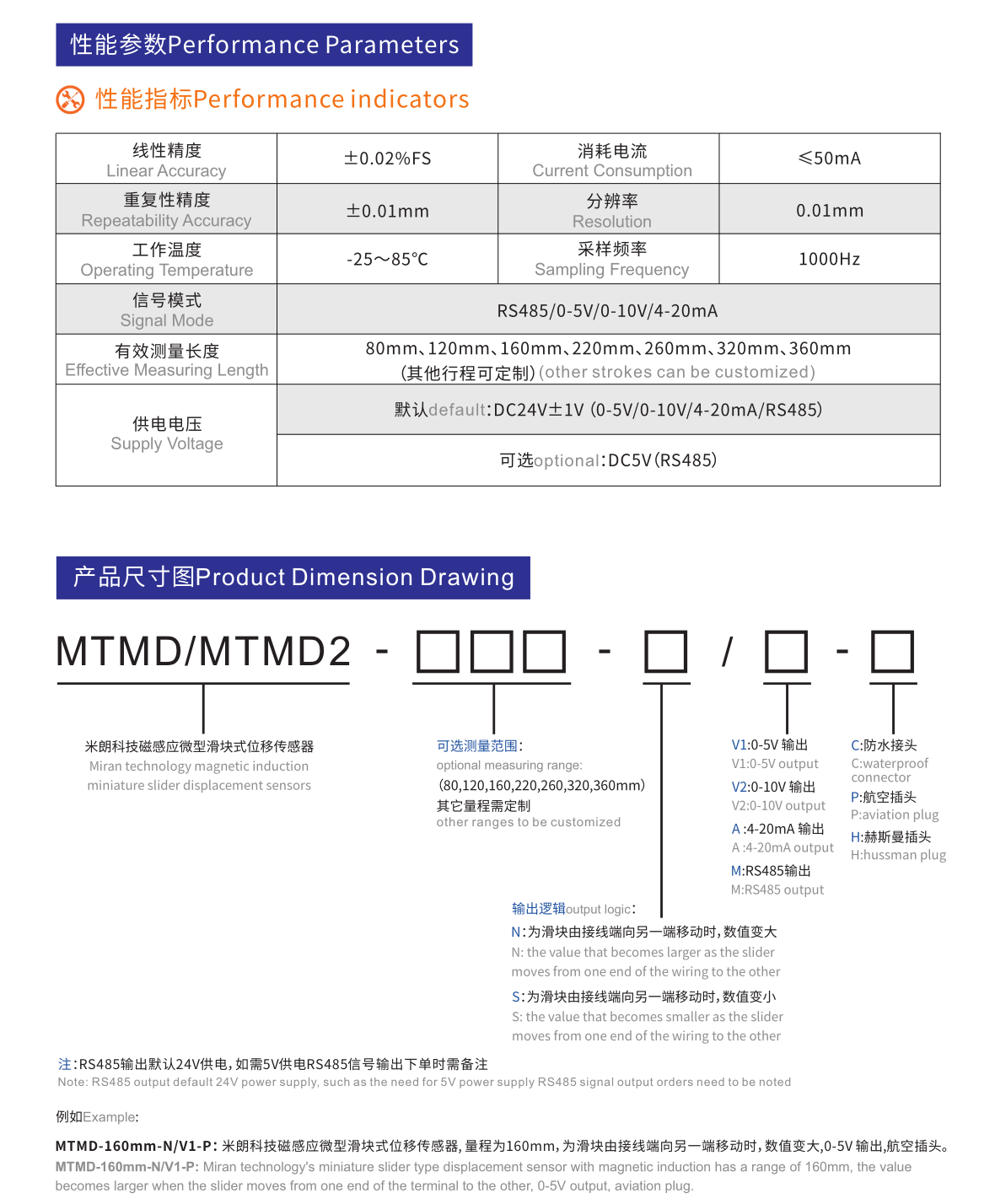

Technical parameters of MTMD/MTMD2 slider displacement sensor:

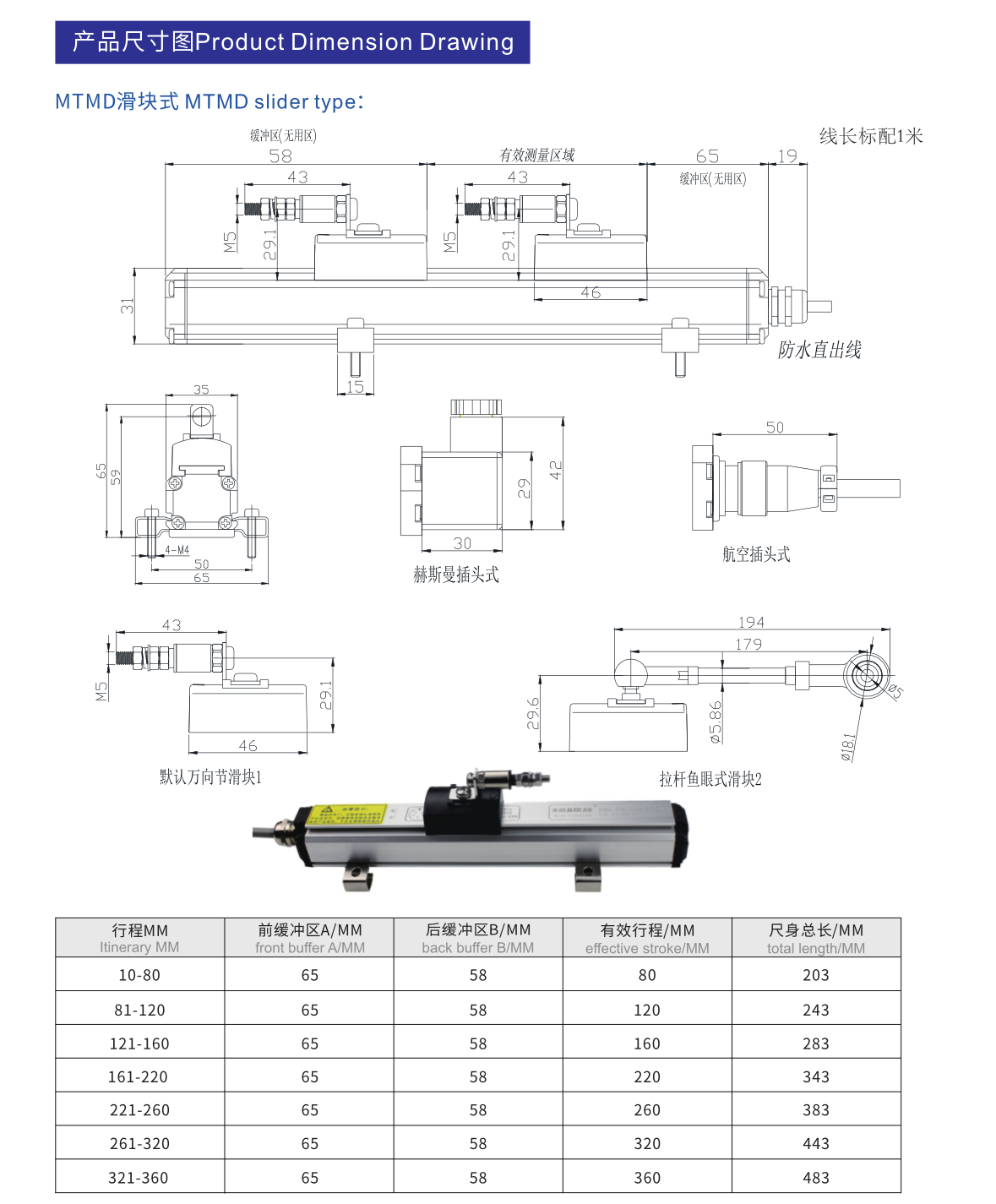

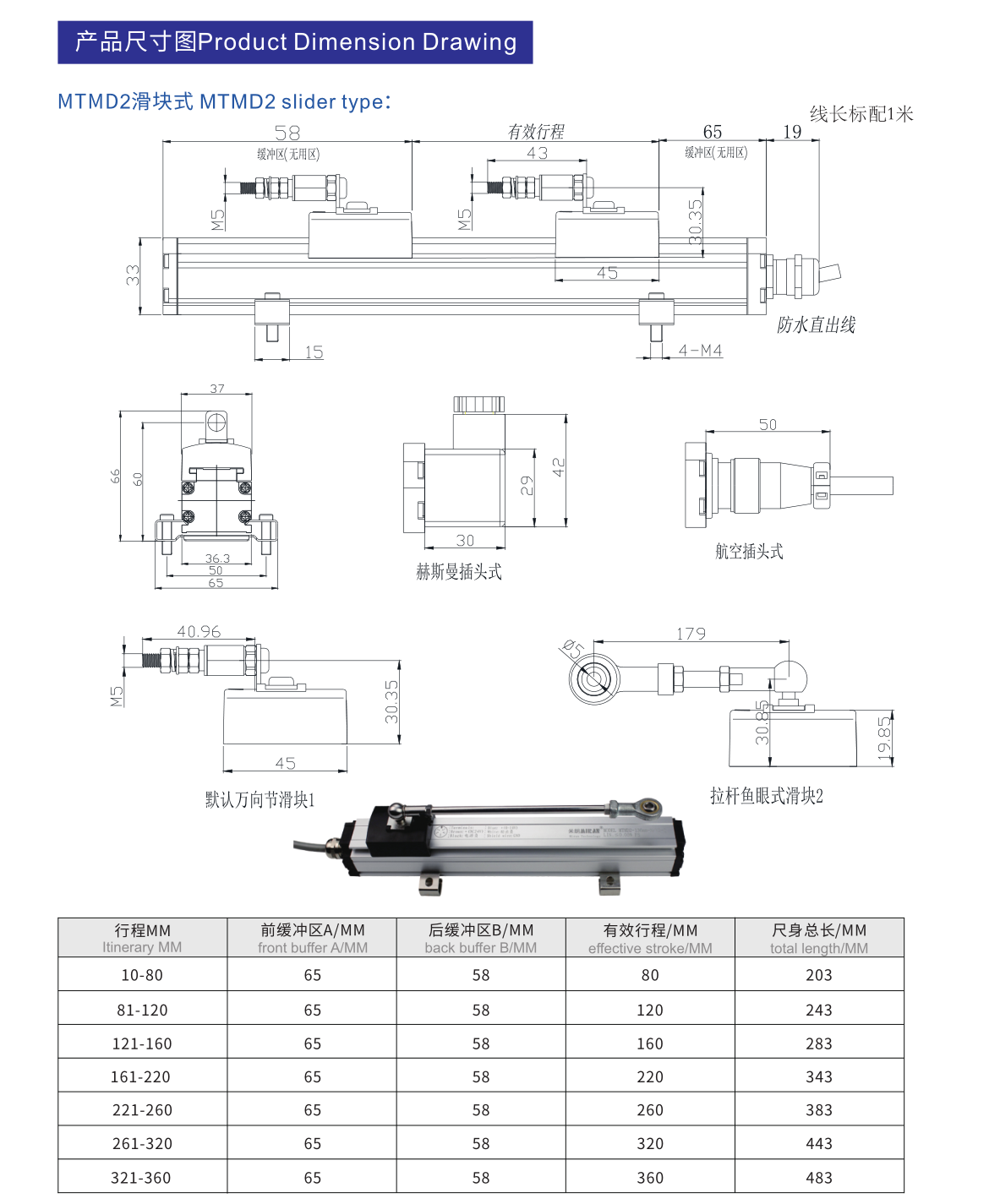

Installation dimensions of MTMD/MTMD2 slider displacement sensor:
