KTR series spring self-resetting resistance scale (also known as crack gauge, crack displacement sensor, electronic scale, potentiometer, displacement sensor) principle: The principle of potentiometer: All sensors are position measurement type, used in regulation systems (control systems) and measurement systems to directly measure displacement and length, and output DC voltage signals. The signals can also be converted into standard 0-5V, 0-10V or 4-20mA DC signals through built-in or external V/A transmission modules. It can also transmit control requirements over long distances. The KTR series spring self-resetting resistance scale (also known as crack gauge, crack displacement sensor, electronic scale, potentiometer, displacement sensor) has an output displacement variation of 0-100% given input working voltage (varying with displacement).

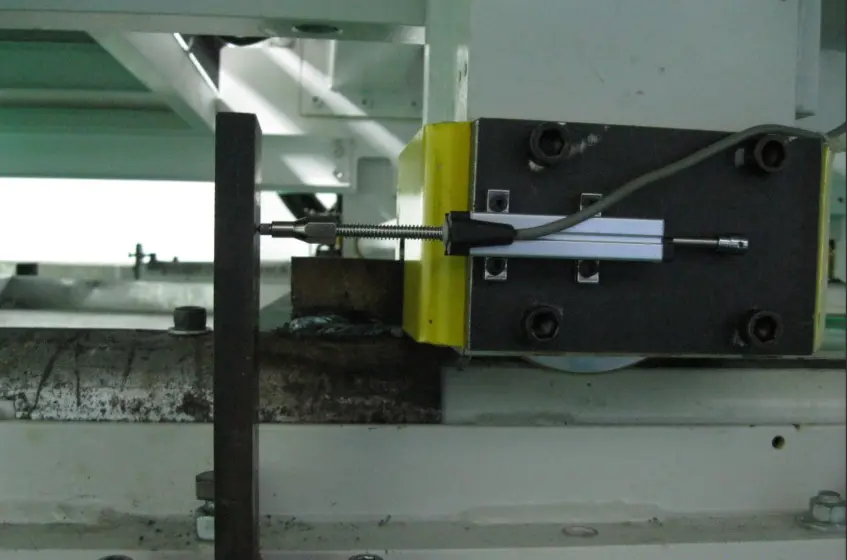

The following figure shows an application case of the Miran KTR self-resetting displacement sensor installed in the cast film machine
